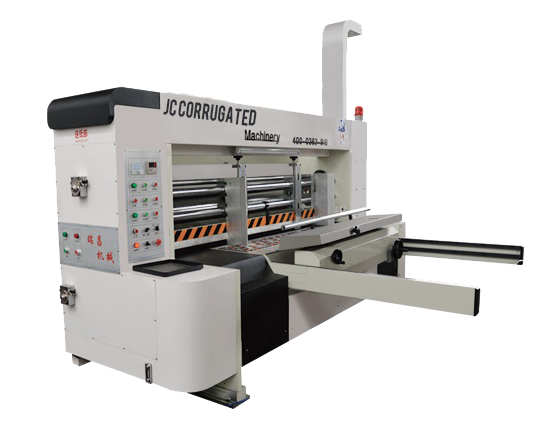

LJXCQYKM Automatic Printing Machine Series

Commodity name： LJXCQYKM Automatic Printing Machine Series
Commodity ID： cp2010

Category:

Printing Machinery

E-mail:

maywang2014@jccorrugated.com

WhatsApp:

+86-15303271860

View product video

Product inquiry

Main featrues

★ Designed According the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,revision, implement, replacing and memories function in a shot time,and display with a exact data.
★ All the drive rollers adopted high quality steel materials,hard chromium plating and the surface treated by lapping finish.
★ The drive gears adopt high quality alloy steel,after heat treatment and lapping finish.
★ The main drive roller adopt keyless connect,decrease the connection gap, guarantee the printing presicion.
★ Lubricate oil automatic balance device,keep the equal oil level equal in each unit.
★ Use sun feeder for feed the cardboard.
★ Customer can chose use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be chosed accord the customer use

Technical parameter

Project	Type
Project	QYKM-920	QYKM-1224	QYKM-1228	QYKM-1428	QYKM-1628	QYKM-1632
Max. mechine speed (P/min)	80	80	60	60	60	60
Max. feeding size (mm)	900 × 2000	1200 × 2400	1200 × 2800	1600 × 2400	1600 × 2800	1600 × 3200
Min. feeding size (mm)	260 × 600	350 × 600	350 × 600	400 × 600	450 × 600	450 × 600
Sheet feeding (mm)	1200 × 2000	1500 × 2400	1500 × 2900	1600 × 2400	2000 × 2800	200 × 3200
Max. printing size (mm)	900 × 1960	1200 × 2360	1200 × 2760	1600 × 2360	1600 × 2760	1600 × 3160
Standard printing thickness (mm)	7.2	7.2	7.2	7.2	7.2	7.2
Min. slotting (Interval single axis)	150 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150
Min. slotting (Interval single axis)	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 66	270 × 65 × 270 × 65
Min. slotting (Interval double row)	150 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150	160 × 150 × 150 × 150	150 × 150 × 150 × 150	150 × 150 × 150 × 150
Min. slotting (Interval double row)	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 65 × 270 × 65	270 × 66 × 270 × 65
Max. groove depth (mm)	250	300	300	400	400	400

★ Lead edge register, adjusting suction.
★ Special design for te thin sheet.
★ Speed up smoothly.

★ Circumferential register is motorized adjust with digital display.
★ Anilox roll doctor ink evenly to make perfect print.
★ Circumference poistion fix device, electromagnetic clutch breaker.
★ Die-cutting pressure gap is motorized adjust.
★ Setting displacement measure device for anvil roll.
★ Quick change over rubber anvil, good wear-ability.
★ Speed difference compensation system make line speed be synchronization, it can ensure die cutting precise.
