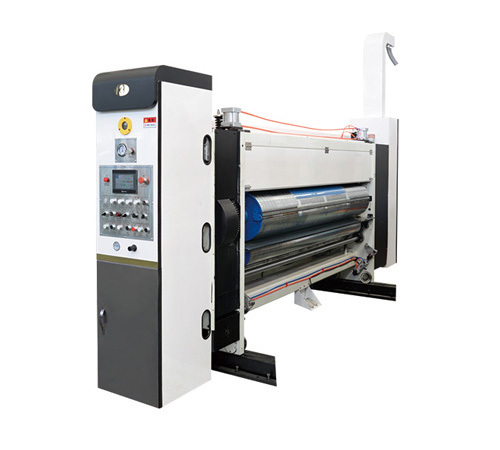

LJXCRD series (upper print / roll to roll transfer)

Commodity name： LJXCRD series (upper print / roll to roll transfer)
Commodity ID： cp2011

Category:

Printing Machinery

E-mail:

maywang2014@jccorrugated.com

WhatsApp:

+86-15303271860

View product video

Product inquiry

Main featrues

★ CNC control system, fault display, production control, remote maintenance.
★ Automatic detection and positioning system, fast hanging board drive system, quick change of order.
★ Widening type dust box, in addition to static device, central dust collection, anti-pressure protection dust collection and perfect.
★ Adsorption wheel box transmission, the transmission uses alloy steel precision grinding gear to ensure the precision life.
★ "Up and down the city" high-speed stacking paper recycling system, protective printing surface wiping, high production efficiency.
★ Electrical components, transmission bearings adopt international brands, and passed European CE certification.

Technical parameter

Project		Type
Project		RD920	RD924	RD1224	RD1228	RD1624	RD1628	RD1632
Max. speed (piece / min)		300	280	250	230	180	180	160
Paper feeding prectsion ( mm )		±1.0	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0
Max. feed size ( mm )		900 × 2100	900 × 2500	1200 × 2500	1200 × 2900	1600 × 2500	1600 × 2900	1600 × 3300
Min. feed size ( mm )		300 × 600	300 × 600	350 × 600	350 × 600	450 × 600	450 × 600	450 × 600
Size of drawing paper ( mm )		1200 × 2100	1200 × 2500	1500 × 2500	1500 × 2500	2000 × 2500	2000 × 2900	2000 × 3300
Max. printing area ( mm )		900 × 2000	900 × 2400	1200 × 2400	1200 × 2800	1600 × 2400	1600 × 2800	1600 × 3200
Printing set (mm)		±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Thickness of standard printing plate ( mm )		7.2mm	7.2mm	7.2mm	7.2mm	7.2mm	7.2mm	7.2mm
Min. slotting interval (mm)	Positive knife	130 × 130	130 × 130	130 × 130	130 × 130	130 × 130	130 × 130	130 × 130
Min. slotting interval (mm)	Scalpel	230 × 65	230 × 65	230 × 65	230 × 65	230 × 65	230 × 65	230 × 65
Max. groove depth ( mm )		250	250	300	300	400	400	400
Slotting accuracy ( mm )		±1.5	土 1.5	±15	±1.5	±1.5	±1.5	±1.5
Die cutting precision ( mm)		±1.0	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0

Paper feeding unit

★ Main control computer and unit man-machine interface control system;
★ Leading edge paper feeding system, variable frequency control air volume, paper feeding, stable;
★ Side and front baffle linear guide traverse system, stable and precise control;
★ Regular paper side shot system, smooth paper feeding, electric adjustment of paper tray displacement;
★ Widened dust removal system, static elimination device, anti-pressure protection, perfect dust removal.

Printing unit

★ Master computer and unit man-machine interface control.
★ Two-sided reel lock version, fast-hanging drive, automatic detection reset.
★ Set control ink-saving cycle ink supply system --- Ink protection, ink shortage alarm, ink saving setting, quick cleaning.
★ Optional: Double scraper wiping system (national invention patent).

Slotting device

★ Main control computer and unit man-machine interface adjustment
★ Precision linear guide and cross shaft connecting rod displacement system, stable and accurate.
★ Precision ball screw displacement system and high steel rail mount for precise service life.
★ The height adjustment of the slotted box adopts the internal gear mechanism and is adjusted by the independent drive box.
★ Fixed wheel, slotted cutter head, automatic adjustment of clearance, large displacement mechanism of medium cutter.

Die cutting unit

★ Master computer and unit man-machine interface control.
★ Pneumatic tooth gap lock device, die cutting pressure electric and setting adjustment
★ The guide wheel moves quickly, the gap is electric, and the setting is adjusted.
★ Automatic roller mechanism for rubber pad roller, imported quick change rubber pad and rubber pad grinding correction mechanism.
★ Accurate "set" speed difference compensation system to ensure die cutting accuracy and wide compensation range.
