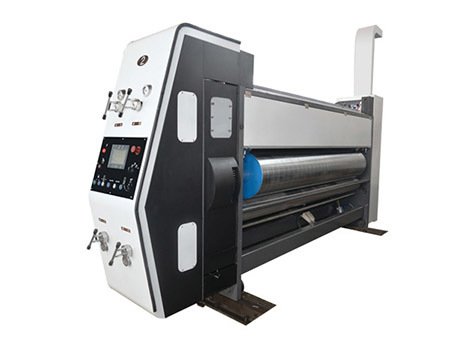

LJXCZYKM-B series (upper print / roll to roller transfer)

★ Roller leading edge paper feeding system, independent electronic shaft, extended paper feeding. Adopting international advanced technology, the system is stable and the paper feeding precision is high.
★ The suction fan assists in feeding paper, and the air volume is adjusted by frequency to ensure the smooth feeding of the curved cardboard. Suitable for 3, 5, 7 pressed corrugated board.
★ The front bezel is manually adjusted and the dial is displayed for direct convenience.
★ The left and right side flaps are individually adjusted and displayed digitally.
★ The tailgate is electrically adjusted, which is simple and convenient.
★ Double conveyor roller mechanism, the first group of paper feed rollers adopts floating structure, and the pressure can be adjusted by spring force. Manual adjustment of clearance, signage,
★ The adjustment range is 1 to 12 mm.
★ A brush at the entrance of the paper feed roller to remove impurities from the cardboard surface. A dust mechanism is installed between the two sets of paper feed rollers for sucking away impurities on the surface of the cardboard.
★ To improve the quality of printing.

★ Printing roller: steel cylinder, surface grinding, hard chrome plating. Diligent balance correction, the link is stable.
★ The axial adjustment is manually adjusted, and the axial adjustment range is 10mm.
★ Ratchet fixed roll shaft. The full version of the grooved loading and unloading printing plate, the foot switch electric control is reversed.
★ The gap of the presser roller is manually adjusted, and the label is displayed. The adjustment range is 4~12mm.
★ Rubber roller printing system. The surface of the steel pipe is covered with wear-resistant rubber, and the medium and high special grinding. The gap is electrically adjusted, digital display, and the adjustment range is 0 to 6 mm. (selected With: scraper ink system)
★ Grinding anilox rolls: with a separate motor-driven idler to ensure ink is not known during shutdown. Network cable: 160 to 500 optional. (Optional: Ceramic Anilox roller)
★ The paper feed ring can be quickly moved and locked. (Optional: Full vacuum Fu-delivery system)

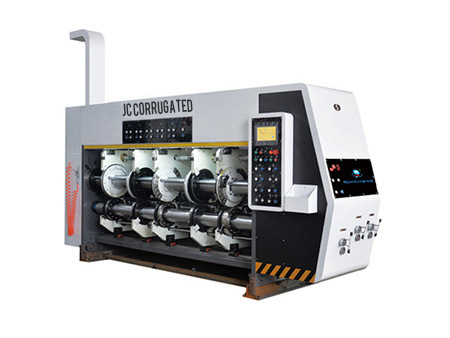

★ Pre-pressure wheel device: electric linkage type slotting, pressing line and pre-pressing are completed once.
★ Electric adjustment of the length, width, height and folding of the carton, digital display.
★ The pressure of the pressure roller is manually adjusted, and the dial displays the adjustment value.
★ Slotting knife thickness 7mm, alloy steel material, zigzag heat treatment toothed grinding, sharp edge, high precision.
★ The slotted phase is adjusted by computer electric numerical 360 degree.
★ Add a hand hole holder.
★ Install a chain control switch in the slotted section to achieve emergency stop, stop or resume paper feed.

★ Manually adjust the die cutting pressure gap.
★ The pad roller automatically traverses the swimming device.
★ Imported quick-change rubber pad and wear resistance.
★ Speed ​​difference compensation system ensures line speed consistency and guarantees accuracy.
★ Pad grinding mechanism to extend the life of the pad and reduce consumption.
