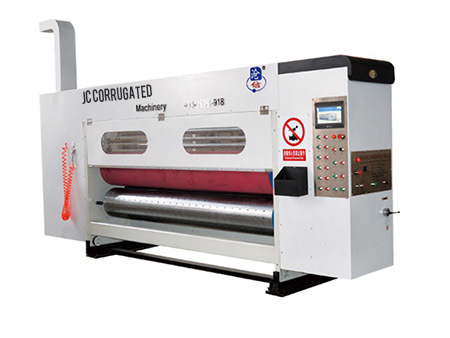

LJXCZYKM-C series (upper print / roll to roller transfer)

★ Roller leading edge paper feeding system, independent electronic shaft, extended paper feeding. Adopting international advanced technology, the system is stable and the paper feeding precision is high.
★ The adsorption fan helps to feed the paper, and the air volume is adjusted by frequency to ensure the smooth feeding of the curved cardboard. Suitable for 3, 5, 7 pressed corrugated board.
★ The front bezel is manually adjusted to display the dial, which is convenient.
★ The left and right side bezels can be individually adjusted and displayed digitally.
★ The rear baffle is electrically adjusted, which is simple and convenient.
★ Double conveying roller mechanism, the first group of paper feeding rollers adopts a floating structure, and the pressure can be adjusted by the spring force. Manually adjust the gap, the logo is displayed
★ The adjustment range is from 1 to 12 mm.
★ A brush at the entrance of the paper feed roller to remove impurities from the surface of the paperboard. A dustproof mechanism is installed between the two sets of paper feed rollers to suck the cardboard surface impurities improve print quality.

★ Printing roller: cylinder, surface grinding, hard chrome plating. Diligent balance correction, stable links.
★ Adjust the axial adjustment manually, the axial adjustment range is 10mm.
★ Ratchet fixed roller shaft. The full version of the slotted loading and unloading plate, the electronic control of the foot switch is the opposite.
★ Manually adjust the gap of the pressure roller and display the label. The adjustment range is 4~12mm.
★ Rubber roller ink system. The surface of the steel pipe is covered with wear-resistant rubber, and the medium and high special grinding. The gap is electrically adjustable and digitally displayed with an adjustment range of 0 to 6 mm. (select with: squeegee system)
★ Grinding anilox rolls: Independent motorized idler wheels ensure no ink during shutdown. Network cable: 160 to 500 optional. (optional: ceramic anilox roller)
★ The paper tab can be moved and locked quickly. (optional: full vacuum delivery system)

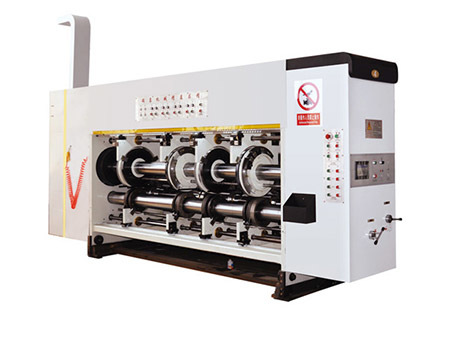

★ Pre-pressure wheel device: electric linkage type slotting, pressing line and pre-pressing are completed once.
★ Electric adjustment of the length, width, height and folding of the carton, digital display.
★ The pressure of the pressure roller is manually adjusted, and the dial displays the adjustment value.
★ Slotting knife thickness 7mm, alloy steel material, zigzag heat treatment toothed grinding, sharp edge, high precision.
★ The slotted phase is adjusted by computer electric numerical 360 degree.
★ Add a hand hole mold base.
★ The chain control switch is installed in the slotted part to realize emergency stop, stop or resume paper feeding.

★ Manually adjust the die cutting pressure gap.
★ The rubber pad roller automatically traverses the swimming device.
★ Imported quick-change rubber pad and wear resistance.
★ Speed ​​difference compensation system ensures line speed consistency and guarantees accuracy.
★ Pad grinding mechanism to extend the life of the pad and reduce consumption.
