LJXCZYKM-D series (upper/roller-to-roll transfer)

Commodity name： LJXCZYKM-D series (upper/roller-to-roll transfer)
Commodity ID： cp2019

Category:

Printing Machinery

E-mail:

maywang2014@jccorrugated.com

WhatsApp:

+86-15303271860

View product video

Product inquiry

Main featrues

★ Host and digital display control system, can store general orders, easy to operate
★ Electronic suspension, automatic reset, quick replacement.
★ Each unit is equipped with an emergency stop switch and safe operation control.
★ The gap adjustment adopts electric adjustment device, which is more convenient to operate.
★ High-strength design of the whole machine, spray-type circulating lubrication system.
★ International components such as electrical components, main bearings and start control components.

Technical parameter

Project		Type
Project		ZYKM-D 1022	ZYKM-D 1225	ZYKM-D 1229	ZYKM-D 1425	ZYKM-D 1429	ZYKM-D 1625	ZYKM-D 1629	ZYKM-D 1632
Maximum speed (piece/ min)		120	100	80	100	80	80	80	60
Paper foeding precision ( mm )		±1.0	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0
Maximum feed size ( mm)		1000 × 2300	1200 × 2500	1200 × 2900	1400 × 2500	1400 × 2900	1600 × 2500	1600 × 2900	1600 × 3300
Minimum feed size ( mm)		300 × 600	350 × 600	350 × 600	400 × 600	400 × 600	450 × 600	450 × 600	450 × 600
Size of drawing paper ( mm )		1300 × 2100	1500 × 2500	1500 × 2900	1700 × 2500	1700 × 2900	2000 × 2500	2000 × 2900	2000 × 3300
Maximum printing area ( mm)		1000 × 2200	1200 × 2400	1200 × 2800	1400 × 2400	1400 × 2800	1600 × 2400	1600 × 2800	1600 × 3200
Printing set ( mm)		±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Thickness of stancard printing plate (mm)		5mm	5mm	5mm	5mm	5mm	5mm	5mm	5mm
Minimum slotting interval(mm)	Positive knife	160 × 160	160 × 160	160 × 160	160 × 160	160 × 160	160 × 160	160 × 160	180 × 180
Minimum slotting interval(mm)	Scalpel	270 × 65	270 × 65	270 × 65	270 × 65	270 × 65	270 × 65	270 × 65	270 × 65
Maximum groove depth ( mm)		250	300	300	350	350	400	400	400
Slotting accuracy ( mm )		±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5
Die cutting precision ( mm)		±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5

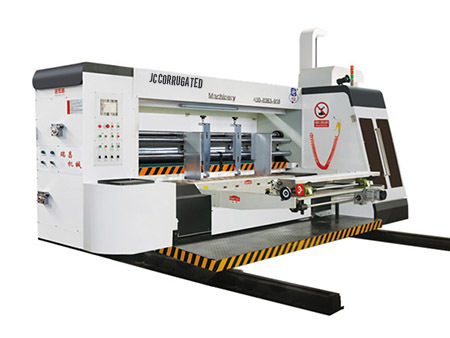

Paper feeding unit

★ Roller leading edge paper feeding system, independent electronic shaft, extended paper feeding. Adopting international advanced technology, the system is stable and the paper feeding precision is high.
★ Adsorption fan assists paper feeding, and the air volume is adjusted by frequency to ensure smooth feeding of curved cardboard. Suitable for 3, 5, 7 pressed corrugated board.
★ The front bezel is manually adjusted, the dial is displayed, and it is directly convenient.
★ The left and right side bezels are individually adjusted and displayed digitally.
★ The tailgate is electrically adjusted, which is simple and convenient.
★ Double conveyor roller mechanism, the first group of paper feed rollers adopt floating structure, and the pressure can be adjusted by spring force. The gap is manually adjusted, the sign is displayed, and the adjustment range is 1 to 12 mm.
★ A brush at the entrance of the paper feed roller to remove impurities from the surface of the paperboard. A dust mechanism is installed between the two sets of paper feed rollers to absorb impurities on the surface of the paperboard to improve the printing quality.

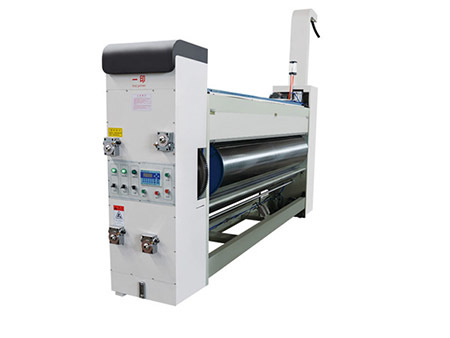

Printing unit

★ Printing roller: steel cylinder, surface grinding, hard chrome plating. Diligent balance correction, the link is stable.
★ The axial adjustment is manually adjusted, and the axial adjustment range is 10mm.
★ Ratchet fixed roll shaft. The full version of the grooved loading and unloading printing plate, the foot switch electric control is reversed.
★ The gap of the pressure roller is manually adjusted, and the label is displayed. The adjustment range is 4~12mm.
★ Rubber roller ink system. The surface of the steel pipe is covered with wear-resistant rubber, and the medium and high special grinding. The gap is electrically adjusted, digital display, and the adjustment range is 0 to 6 mm.
(Optional: Scraper and ink system)
★ Grinding anilox rolls: with a separate motor-driven idler to ensure ink ignorance during shutdown. Network cable: 160 to 500 optional. (Optional: ceramic anilox roller)
★ The paper pull ring can be quickly moved and locked. (Optional: Full vacuum Fu-delivery system)

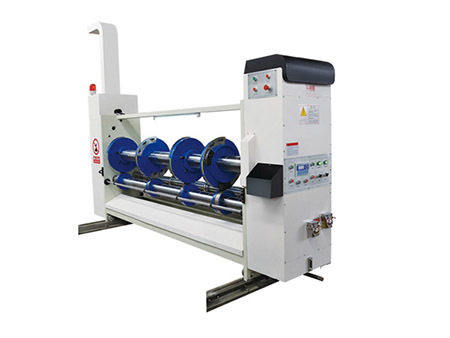

Slotting unit

★ Electric adjustment of the length, width, height and folding of the carton, digital display.
★ The pressure of the pressure roller is manually adjusted, and the dial displays the adjustment value.
★ Slotting knife thickness 7 mm, alloy steel material, zigzag heat treatment toothed grinding, sharp edge, high precision.
★ The slotted phase is adjusted by computer electric numerical 360 degree.
★ Add a hand hole mold base.
★ The chain control switch is installed in the slotted part to realize emergency stop, stop or resume paper feeding.

Die cutting unit

★ Manually adjust the die cutting pressure gap.
★ The rubber pad roller automatically traverses the swimming device.
★ Imported quick-change rubber pad and wear resistance.
★ Speed difference compensation system ensures line speed consistency and guarantees accuracy.
★ Pad grinding mechanism to extend the life of the pad and reduce consumption.
