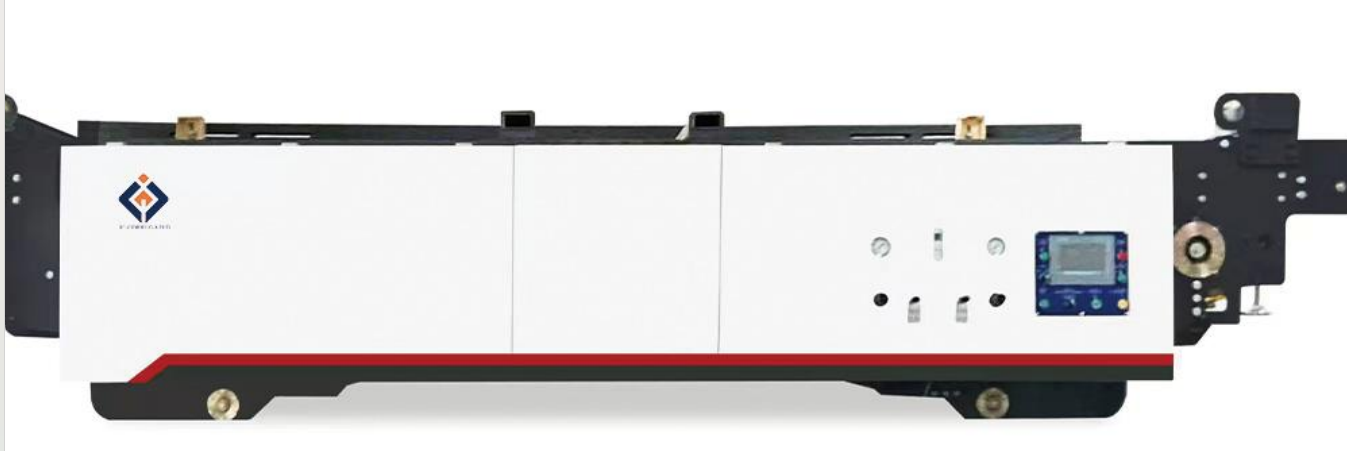

Corrugated Board Production Line

Commodity name： Corrugated Board Production Line
Commodity ID： cp1001

Category:

Corrugated Cardboard Machinery

E-mail:

maywang2014@jccorrugated.com

WhatsApp:

+86-15303271860

Product inquiry

Structural features

★ Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard. The 3ply, 5ply, 7ply and multi-function corrugated cardboard production line mainly consist of the following equipment: Mill Roll Stand, surface paper (core-paper) pre-heater, single facer, Conveying Bridge, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System, etc.
★ The 3ply, 5ply, 7ply, and multi-function corrugated cardboard production line has high middle and low grade with different-specification and different-quality equipment. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 100-220m/min; the paper width 1600-2200mm and four fluting UV type A, B, C, E for all the customers to choose from.

Technical parameter

Specifications	Maximum machine speed	Economical production speed	Maximum width of paper
JC 150-I(II III）	150m/min	80-120m/min	1800-2200mm
JC 180-I(II III）	180m/min	120-150m/min	1600-2200mm
JC 220-I(II III）	220m/min	140-180m/min	1600-2200mm
